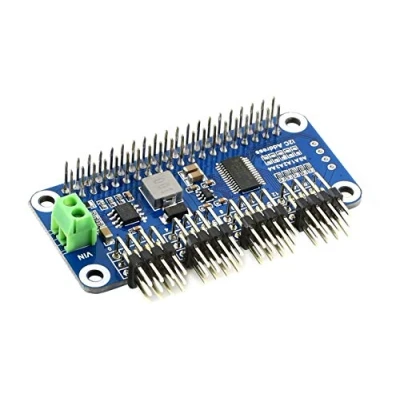

Waveshare Servo Driver Hat (B) for Raspberry Pi 16 Channel 12 bit I2C Interface Right Angle Pinheader

Note: Raspberry Pi and servos are NOT included. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. I2C controlled, using only 2 pins.Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales). Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal. Standard servo interface, supports common used servo. Reserved I2C control pins, allows to work with other control boards.
