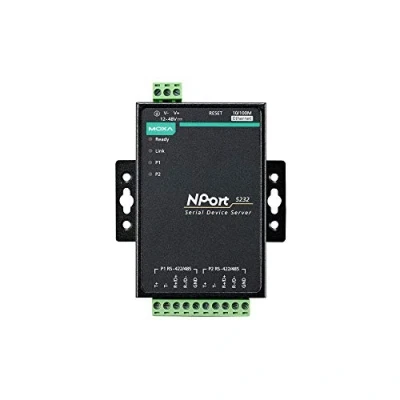

MOXA Industrial Ethernet Serial Device Server, 2 Port x 10 Pol Terminal Block Anschluss für RS 485422 und (Nport 5232)

Kompaktes Design für einfache Installation, Socket-Modi: TCP Server, TCP Client, UDP, Easy-to-use Windows Utility für die Konfiguration mehrerer Geräte-Servers, ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485, SNMP MIB-II for network management By specificying the NPort 5232 IP address and port number, a network sockets API can obtain access to the attached serial device over the network, from any host computer that supports TCP/IP. Für ältere Windows oder Linux-Software, die COM oder TTY-basiert ist, bietet Moxa's COM/TTY Treiber einen nahtlosen Weg des Betriebs über das Netzwerk. With the Real COM/TTY drivers that are provided with each NPort, software designed for communication with COM/TTY ports can be instantly and seamlessly integrated into a TCP/IP-network. This is an excellent no fuss way to keep your software investment and enjoy the benefits of networking your serial devices. Kann im TCP Server, TCP Client, oder UDP-Betriebsmodus betrieben werden, um Kompatibilität mit Software basierend auf einem Standard-API-Netzwerk (Winsock, BSD Sockets) zu gewährleisten. Windows Real COM Drivers: Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT, Windows Embedded CE 5.0 / 6. .0, Windows XP Embedded Input Current: 280mA @ 12VDC, Input Voltage: 12 to 48VDC, Power Inputs: 1, Power Connector: 1 removable 3-contact terminal block (s) Gehäuse: Metall, Abmessungen (mit Ohren): 90 x 100,4 x 22 mm (3,54 x 3,95 x 0,87 in), Abmessungen (ohne Ohren): 67 x 100,4 x 22 mm (2,64 x 3,95 x 0,87 in), Gewicht: 360 gr. (0.79 lb) Installation: Desktop, DIN-Rail-Montage (mit optionalem Kit), Wandmontage Green Product: RoHS, CRoHS, WEEE Standards and Certifications: EMC: EN 55032/35 || EMI: CISPR 32, FCC Part 15B Class A ||| EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 610000 -4-11 ||| Safety: UL 60950-1 ||| Maritime: DNV
