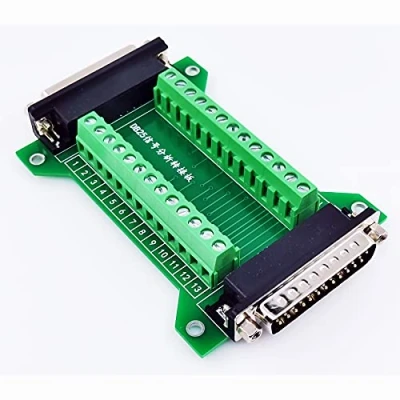

DB25 Signal Analyzer Compatible with Male and Female Terminals of Trunk Terminal Block to Adapter Board(Male adapter)

DB25 relay terminal is compatible with the male and female terminals. The male and female terminals are integrated on the same DB25 relay terminal adapter board, which has a smaller size. Note: The module is divided into male and female, the female connector is the hole, and the male connector is the pin. DB25 transfer terminal module/parallel port transfer sub-module adopts all-copper DB25 seat, which is anti-oxidation and has better contact DB25 erminal spacing: 5.08 mm, diameter of screw hole: 3 mm, a slotted screwdriver with a width of 3 mm shall be used for disassembly and assembly; DB25 module leads out all the 25-pin signals of the DB port, which is convenient for buyers to connect according to their own needs. At the same time, each signal line is marked with a number, which is convenient for identification. the riveting teeth on the module will become nut type after adding nuts.
